EEM211 Sayısal Mantık Tasarımı: Kapılardan Sayıcılara Xilinx Şematik Kaynakları

EEM211 – Sayısal Mantık Tasarımı · 13.01.2008 · 18.10.2026

Arkadaşların hazırladığı Xilinx ISE laboratuvar şemalarının kaynak dosyaları. Örnekler temel kapıları, toplayıcıları, MUX/kod çözücüleri, flip-flopları, sayıcıları ve gösterge bağlantılarını kapsıyor. Kişisel dosya ve klasör adları kaldırıldı. Kaynaklar ZIP olarak yazının sonunda indirilebilir.

Şemalar nasıl okunur?

SCH dosyasındaki NETLIST bölümü, giriş/çıkış portlarını ve bileşenlerin pin bağlantılarını tanımlar. Aşağıda çizim koordinatları yerine bu bağlantılar aranabilir metin olarak verildi. BLOCK satırı bileşen örneğini ve türünü; PIN satırı uç adını ve bağlı sinyali gösterir. Bağlantı değeri olmayan uçlar kaynakta da boştur.

AND/OR/INV blokları temel mantık kapılarıdır. fd D flip-flop, fjkc JK flip-flop, m2_1 ve m4_1e çoğullayıcı, d2_4e kod çözücü, cb8ce sekiz bitlik sayıcı bloklarıdır. SSdriver, tamtoplayici ve tamtoplayici4 kullanıcı tanımlı alt modüllere başvurur.

Not: Bunlar tam ve doğrulanmış bir proje paketi değildir. Bazı şemalar ayrı Verilog alt modüllerine ihtiyaç duyar; derleme çıktıları ve proje yedekleri pakete eklenmedi. Kaynaklar çalıştırılmadı.

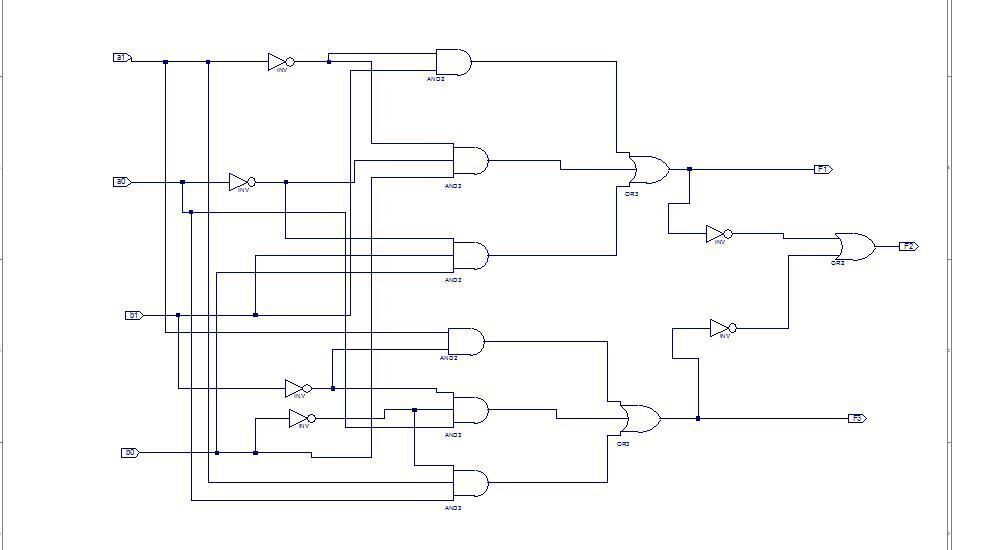

Karşılaştırıcı ekran görüntüsü

Aynı klasördeki iki bitlik girişleri karşılaştıran kapı şemasının yalnız devre alanı korunmuştur. F1, F2 ve F3 çıkışlarını üreten AND, OR ve NOT bağlantıları görülebilir.

İki bitlik girişler için üç çıkışlı mantık devresi — Kişisel pencere bilgileri çıkarılmış şema alanı

Dosyalar ve bileşenler

ZIP içi dosya	Bileşen türleri
sema-01/asdf.sch	SSdriver × 1, pullup × 1, ibuf × 1, and2 × 1, cb8ce × 1
sema-02/sema1.sch	fd × 2, and2 × 3, or3 × 1, and3 × 2, or2 × 1, inv × 2
sema-03/lab8.sch	fd × 1, inv × 1
sema-04/lab8_2.sch	fjkc × 4, pullup × 1, pulldown × 1
sema-05/lab8_3.sch	fjkc × 4, pulldown × 1, pullup × 1, inv × 4
sema-06/asd.sch	SSdriver × 1, decoder × 1, anode_decoder × 1, clkdiv × 1
sema-07/soru2.sch	cb8ce × 1, SSdriver × 1, pullup × 1, and2 × 1, ibuf × 1
sema-08/soru3.sch	SSdriver × 1, pullup × 1, ibuf × 1, cb8ce × 1, pulldown × 1
sema-09/soru2.sch	SSdriver × 1, cb8ce × 1, and2 × 1, pullup × 1, ibuf × 1
sema-10/soru3.sch	SSdriver × 1, pullup × 1, cb8ce × 1, pulldown × 1, ibuf × 1
sema-11/test.sch	SSdriver × 1, pullup × 1, ibuf × 1, and2 × 1, cb8ce × 1
sema-12/deney2.sch	SSdriver × 1, cb8ce × 1, pullup × 1, ibuf × 1, and2 × 1
sema-13/mantik-devresi.sch	and2 × 2, inv × 1, or2 × 1
sema-14/sematik1.sch	fd × 1, inv × 1
sema-15/sematik02.sch	fjkc × 4, pullup × 1, pulldown × 1
sema-16/sematik03.sch	pulldown × 1, fjkc × 3, pullup × 1, inv × 3
sema-17/sh9.sch	SSdriver × 1, pullup × 1, ibuf × 1, and2 × 1, cb8ce × 1
sema-18/soru2.sch	cb8ce × 1, SSdriver × 1, pullup × 1, ibuf × 1, and2 × 1
sema-19/sema1.sch	and3 × 3, or2 × 3, inv × 5, nand2 × 2
sema-20/sema2.sch	inv × 5, and3 × 4, and2 × 2, or3 × 2, or2 × 1
sema-21/sema.sch	tamtoplayici × 1
sema-22/sema.sch	tamtoplayici4 × 1
sema-23/sematik1.sch	nor3 × 1, and2 × 3, inv × 2
sema-24/MUX.sch	m2_1 × 3, or3 × 1, pulldown × 1, inv × 2
sema-25/samatik.sch	m2_1 × 3, pullup × 1, pulldown × 1, inv × 1, and2 × 1
sema-26/sematik.sch	d2_4e × 1, m4_1e × 1, pullup × 1
sema-27/sema1.sch	and2 × 4, or2 × 2, inv × 3
sema-28/sema2.sch	m2_1 × 3, inv × 2, or3 × 1, pulldown × 1
sema-29/sema3.sch	d2_4e × 1, m4_1e × 1, pullup × 1
sema-30/deny3sema.sch	and2 × 2, or2 × 1, inv × 1
sema-31/aaa.sch	and2 × 2, inv × 1, or2 × 1
sema-32/Sema1.sch	inv × 5, and3 × 3, or2 × 3, nand2 × 2
sema-33/Sema2.sch	inv × 5, and2 × 2, and3 × 4, or3 × 2, or2 × 1
sema-34/soru1.sch	inv × 2, or2 × 1, and2 × 3, and3 × 2, or3 × 1, fd × 2
sema-35/sema01.sch	fd × 1, inv × 1
sema-36/sema02.sch	fjkc × 4, pulldown × 1, pullup × 1
sema-37/sema03.sch	fjkc × 3, pulldown × 1, pullup × 1, inv × 3

Bağlantı dökümleri

sema-01/asdf.sch

PORT Input BTN0
PORT Input mclk
PORT Output SS(7:0)
PORT Output AN(3:0)
BLOCK XLXI_1 SSdriver
  PIN mclk mclk
  PIN S1(3:0) Q(3:0)
  PIN S2(3:0) Q(7:4)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_2 pullup
  PIN O XLXN_1

BLOCK XLXI_3 ibuf
  PIN I BTN0
  PIN O XLXN_13

BLOCK XLXI_4 and2
  PIN I0 Q(1)
  PIN I1 Q(3)
  PIN O XLXN_14

BLOCK XLXI_6 cb8ce
  PIN C XLXN_13
  PIN CE XLXN_1
  PIN CLR XLXN_14
  PIN CEO
  PIN Q(7:0) Q(7:0)
  PIN TC

sema-02/sema1.sch

PORT Input BTN0
PORT Input BTN1
PORT Output LD0
BLOCK XLXI_1 fd
  PIN C BTN0
  PIN D XLXN_1
  PIN Q XLXN_18

BLOCK XLXI_2 fd
  PIN C BTN0
  PIN D XLXN_3
  PIN Q XLXN_16

BLOCK XLXI_11 and2
  PIN I0 BTN1
  PIN I1 XLXN_7
  PIN O XLXN_1

BLOCK XLXI_4 or3
  PIN I0 XLXN_6
  PIN I1 XLXN_5
  PIN I2 XLXN_4
  PIN O XLXN_3

BLOCK XLXI_5 and3
  PIN I0 XLXN_15
  PIN I1 BTN1
  PIN I2 XLXN_11
  PIN O XLXN_4

BLOCK XLXI_6 and2
  PIN I0 XLXN_18
  PIN I1 XLXN_16
  PIN O XLXN_5

BLOCK XLXI_7 and2
  PIN I0 XLXN_18
  PIN I1 BTN1
  PIN O XLXN_6

BLOCK XLXI_3 or2
  PIN I0 XLXN_16
  PIN I1 XLXN_18
  PIN O XLXN_7

BLOCK XLXI_9 inv
  PIN I XLXN_18
  PIN O XLXN_11

BLOCK XLXI_10 inv
  PIN I XLXN_16
  PIN O XLXN_15

BLOCK XLXI_8 and3
  PIN I0 BTN1
  PIN I1 XLXN_15
  PIN I2 XLXN_18
  PIN O LD0

sema-03/lab8.sch

PORT Input mclk
PORT Output F
BLOCK XLXI_1 fd
  PIN C mclk
  PIN D F
  PIN Q XLXN_2

BLOCK XLXI_2 inv
  PIN I XLXN_2
  PIN O F

sema-04/lab8_2.sch

PORT Input mclk
PORT Output Q(3:0)
BLOCK XLXI_1 fjkc
  PIN C mclk
  PIN CLR XLXN_13
  PIN J XLXN_7
  PIN K XLXN_7
  PIN Q Q(0)

BLOCK XLXI_2 fjkc
  PIN C Q(0)
  PIN CLR XLXN_13
  PIN J XLXN_7
  PIN K XLXN_7
  PIN Q Q(1)

BLOCK XLXI_3 fjkc
  PIN C Q(1)
  PIN CLR XLXN_13
  PIN J XLXN_7
  PIN K XLXN_7
  PIN Q Q(2)

BLOCK XLXI_4 fjkc
  PIN C Q(2)
  PIN CLR XLXN_13
  PIN J XLXN_7
  PIN K XLXN_7
  PIN Q Q(3)

BLOCK XLXI_5 pullup
  PIN O XLXN_7

BLOCK XLXI_6 pulldown
  PIN O XLXN_13

sema-05/lab8_3.sch

PORT Input mclk
PORT Output Q(3:0)
BLOCK XLXI_1 fjkc
  PIN C mclk
  PIN CLR XLXN_13
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q XLXN_16

BLOCK XLXI_2 fjkc
  PIN C XLXN_16
  PIN CLR XLXN_13
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q XLXN_24

BLOCK XLXI_3 fjkc
  PIN C XLXN_24
  PIN CLR XLXN_13
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q XLXN_21

BLOCK XLXI_4 fjkc
  PIN C XLXN_21
  PIN CLR XLXN_13
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q XLXN_27

BLOCK XLXI_6 pulldown
  PIN O XLXN_13

BLOCK XLXI_11 pullup
  PIN O XLXN_3

BLOCK XLXI_12 inv
  PIN I XLXN_16
  PIN O Q(0)

BLOCK XLXI_13 inv
  PIN I XLXN_24
  PIN O Q(1)

BLOCK XLXI_14 inv
  PIN I XLXN_21
  PIN O Q(2)

BLOCK XLXI_15 inv
  PIN I XLXN_27
  PIN O Q(3)

sema-06/asd.sch

BLOCK XLXI_1 SSdriver
  PIN mclk
  PIN S1(3:0)
  PIN S2(3:0)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0)
  PIN AN(3:0)

BLOCK XLXI_2 decoder
  PIN S(3:0)
  PIN SS(7:0)

BLOCK XLXI_3 anode_decoder
  PIN cnt(1:0)
  PIN AN(3:0)

BLOCK XLXI_4 clkdiv
  PIN mclk
  PIN clk

sema-07/soru2.sch

PORT Input mclk
PORT Input BTN0
PORT Output SS(7:0)
PORT Output AN(3:0)
BLOCK XLXI_1 cb8ce
  PIN C XLXN_3
  PIN CE XLXN_2
  PIN CLR XLXN_5
  PIN CEO
  PIN Q(7:0) Q(7:0)
  PIN TC

BLOCK XLXI_2 SSdriver
  PIN mclk mclk
  PIN S1(3:0) Q(3:0)
  PIN S2(3:0) Q(7:4)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_3 pullup
  PIN O XLXN_2

BLOCK XLXI_4 and2
  PIN I0 Q(1)
  PIN I1 Q(3)
  PIN O XLXN_5

BLOCK XLXI_5 ibuf
  PIN I BTN0
  PIN O XLXN_3

sema-08/soru3.sch

PORT Input mclk
PORT Input BTN0
PORT Output SS(7:0)
PORT Output AN(3:0)
BLOCK XLXI_2 SSdriver
  PIN mclk mclk
  PIN S1(3:0) Q(3:0)
  PIN S2(3:0) Q(7:4)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_3 pullup
  PIN O XLXN_2

BLOCK XLXI_5 ibuf
  PIN I BTN0
  PIN O XLXN_3

BLOCK XLXI_1 cb8ce
  PIN C XLXN_3
  PIN CE XLXN_2
  PIN CLR XLXN_15
  PIN CEO
  PIN Q(7:0) Q(7:0)
  PIN TC

BLOCK XLXI_7 pulldown
  PIN O XLXN_15

sema-09/soru2.sch

PORT Input mclk
PORT Output SS(7:0)
PORT Output AN(3:0)
PORT Input BTN0
BLOCK XLXI_2 SSdriver
  PIN mclk mclk
  PIN S1(3:0) XLXN_23(3:0)
  PIN S2(3:0) XLXN_24(3:0)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_1 cb8ce
  PIN C XLXN_25
  PIN CE XLXN_29
  PIN CLR XLXN_30
  PIN CEO
  PIN Q(7:0) XLXN_28(7:0)
  PIN TC

BLOCK XLXI_8 and2
  PIN I0 XLXN_26
  PIN I1 XLXN_27
  PIN O XLXN_30

BLOCK XLXI_9 pullup
  PIN O XLXN_29

BLOCK XLXI_10 ibuf
  PIN I BTN0
  PIN O XLXN_25

sema-10/soru3.sch

PORT Input mclk
PORT Output SS(7:0)
PORT Output AN(3:0)
PORT Input BTN0
BLOCK XLXI_13 SSdriver
  PIN mclk mclk
  PIN S1(3:0) XLXN_23(3:0)
  PIN S2(3:0) XLXN_24(3:0)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_9 pullup
  PIN O XLXN_29

BLOCK XLXI_16 cb8ce
  PIN C XLXN_25
  PIN CE XLXN_29
  PIN CLR XLXN_41
  PIN CEO
  PIN Q(7:0) XLXN_39(7:0)
  PIN TC

BLOCK XLXI_7 pulldown
  PIN O XLXN_41

BLOCK XLXI_18 ibuf
  PIN I BTN0
  PIN O XLXN_25

sema-11/test.sch

PORT Input BTN0
PORT Output SS(7:0)
PORT Output AN(3:0)
PORT Input mclk
BLOCK XLXI_1 SSdriver
  PIN mclk mclk
  PIN S1(3:0) Q(3:0)
  PIN S2(3:0) Q(7:4)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_3 pullup
  PIN O XLXN_2

BLOCK XLXI_4 ibuf
  PIN I BTN0
  PIN O XLXN_13

BLOCK XLXI_5 and2
  PIN I0 Q(1)
  PIN I1 Q(3)
  PIN O XLXN_14

BLOCK XLXI_6 cb8ce
  PIN C XLXN_13
  PIN CE XLXN_2
  PIN CLR XLXN_14
  PIN CEO
  PIN Q(7:0) Q(7:0)
  PIN TC

sema-12/deney2.sch

PORT Input BTN0
PORT Input mclk
PORT Output SS(7:0)
PORT Output AN(3:0)
BLOCK XLXI_1 SSdriver
  PIN mclk mclk
  PIN S1(3:0) Q(3:0)
  PIN S2(3:0) Q(7:4)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_2 cb8ce
  PIN C XLXN_1
  PIN CE XLXN_10
  PIN CLR XLXN_9
  PIN CEO
  PIN Q(7:0) Q(7:0)
  PIN TC

BLOCK XLXI_3 pullup
  PIN O XLXN_10

BLOCK XLXI_4 ibuf
  PIN I BTN0
  PIN O XLXN_1

BLOCK XLXI_5 and2
  PIN I0 Q(3)
  PIN I1 Q(1)
  PIN O XLXN_9

sema-13/mantik-devresi.sch

PORT Input A
PORT Input C
PORT Input B
PORT Output F
BLOCK XLXI_1 and2
  PIN I0 B
  PIN I1 A
  PIN O XLXN_8

BLOCK XLXI_2 and2
  PIN I0 C
  PIN I1 XLXN_4
  PIN O XLXN_9

BLOCK XLXI_4 inv
  PIN I B
  PIN O XLXN_4

BLOCK XLXI_5 or2
  PIN I0 XLXN_9
  PIN I1 XLXN_8
  PIN O F

sema-14/sematik1.sch

PORT Input mclk
PORT Output F
BLOCK XLXI_1 fd
  PIN C mclk
  PIN D F
  PIN Q XLXN_3

BLOCK XLXI_2 inv
  PIN I XLXN_3
  PIN O F

sema-15/sematik02.sch

PORT Output Q(3:0)
PORT Input mclk
BLOCK XLXI_1 fjkc
  PIN C mclk
  PIN CLR XLXN_14
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q Q(0)

BLOCK XLXI_2 fjkc
  PIN C Q(0)
  PIN CLR XLXN_14
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q Q(1)

BLOCK XLXI_3 fjkc
  PIN C Q(1)
  PIN CLR XLXN_14
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q Q(2)

BLOCK XLXI_4 fjkc
  PIN C Q(2)
  PIN CLR XLXN_14
  PIN J XLXN_3
  PIN K XLXN_3
  PIN Q Q(3)

BLOCK XLXI_5 pullup
  PIN O XLXN_3

BLOCK XLXI_6 pulldown
  PIN O XLXN_14

sema-16/sematik03.sch

PORT Output Q(2:0)
PORT Input mclk
BLOCK XLXI_24 pulldown
  PIN O XLXN_105

BLOCK XLXI_22 fjkc
  PIN C XLXN_92
  PIN CLR XLXN_105
  PIN J XLXN_102
  PIN K XLXN_102
  PIN Q XLXN_93

BLOCK XLXI_21 fjkc
  PIN C XLXN_89
  PIN CLR XLXN_105
  PIN J XLXN_102
  PIN K XLXN_102
  PIN Q XLXN_92

BLOCK XLXI_20 fjkc
  PIN C mclk
  PIN CLR XLXN_105
  PIN J XLXN_102
  PIN K XLXN_102
  PIN Q XLXN_89

BLOCK XLXI_28 pullup
  PIN O XLXN_102

BLOCK XLXI_29 inv
  PIN I XLXN_89
  PIN O Q(0)

BLOCK XLXI_30 inv
  PIN I XLXN_92
  PIN O Q(1)

BLOCK XLXI_31 inv
  PIN I XLXN_93
  PIN O Q(2)

sema-17/sh9.sch

PORT Input BTN_0
PORT Input mclk
PORT Output SS(7:0)
PORT Output AN(3:0)
BLOCK XLXI_1 SSdriver
  PIN mclk mclk
  PIN S1(3:0) Q(3:0)
  PIN S2(3:0) Q(7:4)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_2 pullup
  PIN O XLXN_1

BLOCK XLXI_3 ibuf
  PIN I BTN_0
  PIN O XLXN_2

BLOCK XLXI_4 and2
  PIN I0 Q(1)
  PIN I1 Q(3)
  PIN O XLXN_3

BLOCK XLXI_5 cb8ce
  PIN C XLXN_2
  PIN CE XLXN_1
  PIN CLR XLXN_3
  PIN CEO
  PIN Q(7:0) Q(7:0)
  PIN TC

sema-18/soru2.sch

PORT Input BTN0
PORT Input mclk
PORT Output SS(7:0)
PORT Output AN(3:0)
BLOCK XLXI_1 cb8ce
  PIN C XLXN_2
  PIN CE XLXN_1
  PIN CLR XLXN_4
  PIN CEO
  PIN Q(7:0) XLXN_14(7:0)
  PIN TC

BLOCK XLXI_2 SSdriver
  PIN mclk mclk
  PIN S1(3:0) XLXN_12(3:0)
  PIN S2(3:0) XLXN_13(3:0)
  PIN S3(3:0)
  PIN S4(3:0)
  PIN SS(7:0) SS(7:0)
  PIN AN(3:0) AN(3:0)

BLOCK XLXI_3 pullup
  PIN O XLXN_1

BLOCK XLXI_4 ibuf
  PIN I BTN0
  PIN O XLXN_2

BLOCK XLXI_5 and2
  PIN I0 Q(1)
  PIN I1 Q(3)
  PIN O XLXN_4

sema-19/sema1.sch

PORT Input SW0
PORT Input SW1
PORT Input SW2
PORT Input SW3
PORT Output XLXN_44
BLOCK XLXI_1 and3
  PIN I0 SW3
  PIN I1 SW2
  PIN I2 XLXN_37
  PIN O XLXN_4

BLOCK XLXI_2 and3
  PIN I0 SW2
  PIN I1 XLXN_14
  PIN I2 XLXN_37
  PIN O XLXN_6

BLOCK XLXI_7 or2
  PIN I0 XLXN_6
  PIN I1 XLXN_4
  PIN O XLXN_5

BLOCK XLXI_8 or2
  PIN I0 XLXN_8
  PIN I1 XLXN_5
  PIN O XLXN_44

BLOCK XLXI_9 or2
  PIN I0 XLXN_7
  PIN I1 XLXN_11
  PIN O XLXN_8

BLOCK XLXI_10 inv
  PIN I XLXN_10
  PIN O XLXN_11

BLOCK XLXI_11 nand2
  PIN I0 SW3
  PIN I1 XLXN_12
  PIN O XLXN_10

BLOCK XLXI_3 and3
  PIN I0 SW3
  PIN I1 XLXN_3
  PIN I2 SW1
  PIN O XLXN_7

BLOCK XLXI_12 inv
  PIN I XLXN_13
  PIN O XLXN_12

BLOCK XLXI_13 nand2
  PIN I0 SW2
  PIN I1 XLXN_14
  PIN O XLXN_13

BLOCK XLXI_5 inv
  PIN I SW1
  PIN O XLXN_14

BLOCK XLXI_6 inv
  PIN I SW2
  PIN O XLXN_3

BLOCK XLXI_4 inv
  PIN I SW0
  PIN O XLXN_37

sema-20/sema2.sch

PORT Input SW0
PORT Input SW1
PORT Input SW2
PORT Input SW3
PORT Output LD2
PORT Output LD0
PORT Output LD1
BLOCK XLXI_1 inv
  PIN I SW0
  PIN O XLXN_19

BLOCK XLXI_2 inv
  PIN I SW1
  PIN O XLXN_22

BLOCK XLXI_3 inv
  PIN I SW2
  PIN O XLXN_20

BLOCK XLXI_4 inv
  PIN I SW3
  PIN O XLXN_18

BLOCK XLXI_5 and3
  PIN I0 XLXN_22
  PIN I1 SW3
  PIN I2 XLXN_19
  PIN O XLXN_33

BLOCK XLXI_6 and3
  PIN I0 XLXN_18
  PIN I1 SW1
  PIN I2 SW0
  PIN O XLXN_29

BLOCK XLXI_9 and2
  PIN I0 XLXN_20
  PIN I1 XLXN_19
  PIN O XLXN_32

BLOCK XLXI_7 and3
  PIN I0 XLXN_18
  PIN I1 XLXN_20
  PIN I2 SW1
  PIN O XLXN_30

BLOCK XLXI_8 and3
  PIN I0 SW3
  PIN I1 SW2
  PIN I2 XLXN_22
  PIN O XLXN_34

BLOCK XLXI_11 or3
  PIN I0 XLXN_31
  PIN I1 XLXN_30
  PIN I2 XLXN_29
  PIN O LD2

BLOCK XLXI_10 and2
  PIN I0 SW0
  PIN I1 XLXN_20
  PIN O XLXN_31

BLOCK XLXI_12 or3
  PIN I0 XLXN_34
  PIN I1 XLXN_33
  PIN I2 XLXN_32
  PIN O LD0

BLOCK XLXI_27 inv
  PIN I XLXN_63
  PIN O LD1

BLOCK XLXI_28 or2
  PIN I0 LD0
  PIN I1 LD2
  PIN O XLXN_63

sema-21/sema.sch

BLOCK XLXI_1 tamtoplayici
  PIN SW0
  PIN SW1
  PIN BTN0
  PIN LD0
  PIN LD1

sema-22/sema.sch

BLOCK XLXI_1 tamtoplayici4
  PIN BTN0
  PIN SW(7:0)
  PIN LD(4:0)

sema-23/sematik1.sch

PORT Input d
PORT Input a
PORT Input c
PORT Input b
PORT Output F
BLOCK XLXI_1 nor3
  PIN I0 XLXN_11
  PIN I1 XLXN_9
  PIN I2 XLXN_8
  PIN O F

BLOCK XLXI_2 and2
  PIN I0 c
  PIN I1 XLXN_1
  PIN O XLXN_8

BLOCK XLXI_3 and2
  PIN I0 XLXN_3
  PIN I1 b
  PIN O XLXN_9

BLOCK XLXI_4 and2
  PIN I0 XLXN_3
  PIN I1 a
  PIN O XLXN_11

BLOCK XLXI_5 inv
  PIN I d
  PIN O XLXN_3

BLOCK XLXI_6 inv
  PIN I a
  PIN O XLXN_1

sema-24/MUX.sch

PORT Input a
PORT Input d
PORT Input c
PORT Input b
PORT Output F
BLOCK XLXI_1 m2_1
  PIN D0 a
  PIN D1 XLXN_6
  PIN S0 b
  PIN O XLXN_9

BLOCK XLXI_2 m2_1
  PIN D0 XLXN_12
  PIN D1 XLXN_6
  PIN S0 c
  PIN O XLXN_10

BLOCK XLXI_3 m2_1
  PIN D0 XLXN_6
  PIN D1 XLXN_13
  PIN S0 d
  PIN O XLXN_11

BLOCK XLXI_4 or3
  PIN I0 XLXN_11
  PIN I1 XLXN_10
  PIN I2 XLXN_9
  PIN O F

BLOCK XLXI_6 pulldown
  PIN O XLXN_6

BLOCK XLXI_7 inv
  PIN I b
  PIN O XLXN_12

BLOCK XLXI_8 inv
  PIN I c
  PIN O XLXN_13

sema-25/samatik.sch

PORT Input a
PORT Input c
PORT Input b
PORT Output F
PORT Input d
BLOCK XLXI_1 m2_1
  PIN D0 XLXN_23
  PIN D1 XLXN_7
  PIN S0 a
  PIN O XLXN_15

BLOCK XLXI_2 m2_1
  PIN D0 XLXN_22
  PIN D1 XLXN_9
  PIN S0 a
  PIN O XLXN_21

BLOCK XLXI_3 m2_1
  PIN D0 XLXN_15
  PIN D1 XLXN_21
  PIN S0 b
  PIN O F

BLOCK XLXI_4 pullup
  PIN O XLXN_7

BLOCK XLXI_5 pulldown
  PIN O XLXN_9

BLOCK XLXI_6 inv
  PIN I c
  PIN O XLXN_23

BLOCK XLXI_7 and2
  PIN I0 d
  PIN I1 XLXN_23
  PIN O XLXN_22

sema-26/sematik.sch

PORT Input a
PORT Input b
PORT Input d
PORT Input c
PORT Output F
BLOCK XLXI_1 d2_4e
  PIN A0 b
  PIN A1 a
  PIN E XLXN_6
  PIN D0 XLXN_7
  PIN D1 XLXN_8
  PIN D2 XLXN_9
  PIN D3 XLXN_10

BLOCK XLXI_2 m4_1e
  PIN D0 XLXN_7
  PIN D1 XLXN_8
  PIN D2 XLXN_9
  PIN D3 XLXN_10
  PIN E XLXN_6
  PIN S0 d
  PIN S1 c
  PIN O F

BLOCK XLXI_3 pullup
  PIN O XLXN_6

sema-27/sema1.sch

PORT Input d
PORT Input a
PORT Input b
PORT Input c
PORT Output F
BLOCK XLXI_1 and2
  PIN I0 d
  PIN I1 a
  PIN O XLXN_10

BLOCK XLXI_2 and2
  PIN I0 XLXN_12
  PIN I1 d
  PIN O XLXN_11

BLOCK XLXI_3 and2
  PIN I0 XLXN_1
  PIN I1 XLXN_12
  PIN O XLXN_7

BLOCK XLXI_4 and2
  PIN I0 XLXN_4
  PIN I1 XLXN_7
  PIN O XLXN_8

BLOCK XLXI_5 or2
  PIN I0 XLXN_11
  PIN I1 XLXN_10
  PIN O XLXN_9

BLOCK XLXI_6 or2
  PIN I0 XLXN_8
  PIN I1 XLXN_9
  PIN O F

BLOCK XLXI_8 inv
  PIN I c
  PIN O XLXN_12

BLOCK XLXI_9 inv
  PIN I b
  PIN O XLXN_1

BLOCK XLXI_7 inv
  PIN I a
  PIN O XLXN_4

sema-28/sema2.sch

PORT Input a
PORT Input d
PORT Input c
PORT Input b
PORT Output F
BLOCK XLXI_1 m2_1
  PIN D0 XLXN_11
  PIN D1 XLXN_13
  PIN S0 c
  PIN O XLXN_14

BLOCK XLXI_2 m2_1
  PIN D0 XLXN_13
  PIN D1 XLXN_19
  PIN S0 d
  PIN O XLXN_15

BLOCK XLXI_3 m2_1
  PIN D0 a
  PIN D1 XLXN_13
  PIN S0 b
  PIN O XLXN_16

BLOCK XLXI_6 inv
  PIN I b
  PIN O XLXN_11

BLOCK XLXI_8 or3
  PIN I0 XLXN_16
  PIN I1 XLXN_15
  PIN I2 XLXN_14
  PIN O F

BLOCK XLXI_4 pulldown
  PIN O XLXN_13

BLOCK XLXI_9 inv
  PIN I c
  PIN O XLXN_19

sema-29/sema3.sch

PORT Input a
PORT Input b
PORT Input c
PORT Input d
PORT Output F
BLOCK XLXI_1 d2_4e
  PIN A0 a
  PIN A1 b
  PIN E XLXN_5
  PIN D0 XLXN_1
  PIN D1 XLXN_2
  PIN D2 XLXN_3
  PIN D3 XLXN_4

BLOCK XLXI_2 m4_1e
  PIN D0 XLXN_1
  PIN D1 XLXN_2
  PIN D2 XLXN_3
  PIN D3 XLXN_4
  PIN E XLXN_5
  PIN S0 c
  PIN S1 d
  PIN O F

BLOCK XLXI_3 pullup
  PIN O XLXN_5

sema-30/deny3sema.sch

PORT Input a
PORT Input b
PORT Input c
PORT Output F
BLOCK XLXI_1 and2
  PIN I0 b
  PIN I1 a
  PIN O XLXN_1

BLOCK XLXI_2 and2
  PIN I0 c
  PIN I1 XLXN_2
  PIN O XLXN_3

BLOCK XLXI_3 or2
  PIN I0 XLXN_3
  PIN I1 XLXN_1
  PIN O F

BLOCK XLXI_4 inv
  PIN I b
  PIN O XLXN_2

sema-31/aaa.sch

PORT Input A
PORT Output F
PORT Input C
PORT Input B
BLOCK XLXI_1 and2
  PIN I0 B
  PIN I1 A
  PIN O XLXN_4

BLOCK XLXI_2 and2
  PIN I0 C
  PIN I1 XLXN_8
  PIN O XLXN_6

BLOCK XLXI_4 inv
  PIN I B
  PIN O XLXN_8

BLOCK XLXI_5 or2
  PIN I0 XLXN_6
  PIN I1 XLXN_4
  PIN O F

sema-32/Sema1.sch

PORT Input SW0
PORT Input SW1
PORT Input SW2
PORT Input SW3
PORT Output LD0
BLOCK XLXI_1 inv
  PIN I SW0
  PIN O XLXN_2

BLOCK XLXI_2 inv
  PIN I SW1
  PIN O XLXN_3

BLOCK XLXI_3 inv
  PIN I SW2
  PIN O XLXN_13

BLOCK XLXI_4 and3
  PIN I0 SW2
  PIN I1 XLXN_3
  PIN I2 XLXN_2
  PIN O XLXN_21

BLOCK XLXI_5 and3
  PIN I0 SW3
  PIN I1 XLXN_13
  PIN I2 SW1
  PIN O XLXN_23

BLOCK XLXI_6 and3
  PIN I0 SW3
  PIN I1 SW2
  PIN I2 XLXN_2
  PIN O XLXN_20

BLOCK XLXI_7 or2
  PIN I0 XLXN_23
  PIN I1 XLXN_21
  PIN O XLXN_19

BLOCK XLXI_8 or2
  PIN I0 XLXN_17
  PIN I1 XLXN_20
  PIN O XLXN_18

BLOCK XLXI_9 or2
  PIN I0 XLXN_18
  PIN I1 XLXN_19
  PIN O LD0

BLOCK XLXI_10 nand2
  PIN I0 SW2
  PIN I1 XLXN_3
  PIN O XLXN_11

BLOCK XLXI_11 nand2
  PIN I0 SW3
  PIN I1 XLXN_15
  PIN O XLXN_16

BLOCK XLXI_12 inv
  PIN I XLXN_11
  PIN O XLXN_15

BLOCK XLXI_13 inv
  PIN I XLXN_16
  PIN O XLXN_17

sema-33/Sema2.sch

PORT Input SW1
PORT Input SW0
PORT Input SW3
PORT Input SW2
PORT Output LD2
PORT Output LD0
PORT Output LD1
BLOCK XLXI_1 inv
  PIN I SW1
  PIN O XLXN_5

BLOCK XLXI_2 inv
  PIN I SW0
  PIN O XLXN_13

BLOCK XLXI_3 inv
  PIN I SW3
  PIN O XLXN_28

BLOCK XLXI_4 inv
  PIN I SW2
  PIN O XLXN_26

BLOCK XLXI_5 and2
  PIN I0 SW3
  PIN I1 XLXN_5
  PIN O XLXN_7

BLOCK XLXI_6 and3
  PIN I0 SW2
  PIN I1 XLXN_5
  PIN I2 XLXN_13
  PIN O XLXN_8

BLOCK XLXI_7 and3
  PIN I0 SW2
  PIN I1 SW3
  PIN I2 XLXN_13
  PIN O XLXN_9

BLOCK XLXI_8 or3
  PIN I0 XLXN_9
  PIN I1 XLXN_8
  PIN I2 XLXN_7
  PIN O LD0

BLOCK XLXI_9 or3
  PIN I0 XLXN_19
  PIN I1 XLXN_18
  PIN I2 XLXN_17
  PIN O LD2

BLOCK XLXI_10 or2
  PIN I0 LD2
  PIN I1 LD0
  PIN O XLXN_16

BLOCK XLXI_11 and2
  PIN I0 SW1
  PIN I1 XLXN_28
  PIN O XLXN_17

BLOCK XLXI_12 and3
  PIN I0 SW0
  PIN I1 SW1
  PIN I2 XLXN_26
  PIN O XLXN_18

BLOCK XLXI_13 and3
  PIN I0 SW0
  PIN I1 XLXN_28
  PIN I2 XLXN_26
  PIN O XLXN_19

BLOCK XLXI_14 inv
  PIN I XLXN_16
  PIN O LD1

sema-34/soru1.sch

PORT Output LD0
PORT Input BTN1
PORT Input BTN0
BLOCK XLXI_1 inv
  PIN I XLXN_13
  PIN O XLXN_4

BLOCK XLXI_2 inv
  PIN I XLXN_20
  PIN O XLXN_14

BLOCK XLXI_3 or2
  PIN I0 XLXN_20
  PIN I1 XLXN_13
  PIN O XLXN_15

BLOCK XLXI_4 and2
  PIN I0 XLXN_13
  PIN I1 BTN1
  PIN O XLXN_3

BLOCK XLXI_5 and3
  PIN I0 BTN1
  PIN I1 XLXN_14
  PIN I2 XLXN_13
  PIN O LD0

BLOCK XLXI_6 and2
  PIN I0 XLXN_13
  PIN I1 XLXN_20
  PIN O XLXN_5

BLOCK XLXI_7 and3
  PIN I0 XLXN_14
  PIN I1 BTN1
  PIN I2 XLXN_4
  PIN O XLXN_2

BLOCK XLXI_8 and2
  PIN I0 BTN1
  PIN I1 XLXN_15
  PIN O XLXN_9

BLOCK XLXI_9 or3
  PIN I0 XLXN_3
  PIN I1 XLXN_5
  PIN I2 XLXN_2
  PIN O XLXN_1

BLOCK XLXI_10 fd
  PIN C BTN0
  PIN D XLXN_1
  PIN Q XLXN_20

BLOCK XLXI_11 fd
  PIN C BTN0
  PIN D XLXN_9
  PIN Q XLXN_13

sema-35/sema01.sch

PORT Output F
PORT Input mclk
BLOCK XLXI_1 fd
  PIN C mclk
  PIN D F
  PIN Q XLXN_1

BLOCK XLXI_2 inv
  PIN I XLXN_1
  PIN O F

sema-36/sema02.sch

PORT Input mclk
PORT Output Q(3:0)
BLOCK XLXI_2 fjkc
  PIN C mclk
  PIN CLR XLXN_3
  PIN J XLXN_19
  PIN K XLXN_19
  PIN Q Q(0)

BLOCK XLXI_3 fjkc
  PIN C Q(0)
  PIN CLR XLXN_3
  PIN J XLXN_19
  PIN K XLXN_19
  PIN Q Q(1)

BLOCK XLXI_4 fjkc
  PIN C Q(1)
  PIN CLR XLXN_3
  PIN J XLXN_19
  PIN K XLXN_19
  PIN Q Q(2)

BLOCK XLXI_5 fjkc
  PIN C Q(2)
  PIN CLR XLXN_3
  PIN J XLXN_19
  PIN K XLXN_19
  PIN Q Q(3)

BLOCK XLXI_6 pulldown
  PIN O XLXN_3

BLOCK XLXI_7 pullup
  PIN O XLXN_19

sema-37/sema03.sch

PORT Input mclk
PORT Output Q(2:0)
BLOCK XLXI_1 fjkc
  PIN C mclk
  PIN CLR XLXN_39
  PIN J XLXN_24
  PIN K XLXN_24
  PIN Q XLXN_22

BLOCK XLXI_2 fjkc
  PIN C XLXN_22
  PIN CLR XLXN_39
  PIN J XLXN_24
  PIN K XLXN_24
  PIN Q XLXN_34

BLOCK XLXI_3 fjkc
  PIN C XLXN_34
  PIN CLR XLXN_39
  PIN J XLXN_24
  PIN K XLXN_24
  PIN Q XLXN_31

BLOCK XLXI_5 pulldown
  PIN O XLXN_39

BLOCK XLXI_7 pullup
  PIN O XLXN_24

BLOCK XLXI_11 inv
  PIN I XLXN_22
  PIN O Q(0)

BLOCK XLXI_12 inv
  PIN I XLXN_34
  PIN O Q(1)

BLOCK XLXI_13 inv
  PIN I XLXN_31
  PIN O Q(2)

Kart pin atamaları

UCF dosyaları mantıksal portları kart üzerindeki FPGA uçlarına bağlar. Bu atamalar kaynak kart içindir; başka karta doğrudan uygulanacağı varsayılmamalı. Beş kaynak da ZIP içinde ayrı klasörlerdedir.

pin-atamalari/01/ssdriver.ucf

NET "AN<0>"  LOC = "P60"  ;
NET "AN<1>"  LOC = "P69"  ;
NET "AN<2>"  LOC = "P71"  ;
NET "AN<3>"  LOC = "P75"  ;
NET "BTN0"  LOC = "P59"  ;
NET "SS<0>"  LOC = "P63"  ;
NET "SS<1>"  LOC = "P62"  ;
NET "SS<2>"  LOC = "P61"  ;
NET "SS<3>"  LOC = "P73"  ;
NET "SS<4>"  LOC = "P74"  ;
NET "SS<5>"  LOC = "P70"  ;
NET "SS<6>"  LOC = "P67"  ;
NET "SS<7>"  LOC = "P68"  ;

pin-atamalari/02/pins.ucf

NET "a"  LOC = "P89"  ;
NET "b"  LOC = "P88"  ;
NET "c"  LOC = "P87"  ;
NET "d"  LOC = "P86"  ;
NET "F"  LOC = "P46"  ;

pin-atamalari/03/aaa.ucf

NET "A"  LOC = "p87"  ;
NET "B"  LOC = "p88"  ;
NET "C"  LOC = "p89"  ;
NET "F"  LOC = "p46"  ;

pin-atamalari/04/pegasus.ucf

NET "BTN0"  LOC = "P59" | IOSTANDARD = LVTTL | SLEW = SLOW ;
NET "BTN1"  LOC = "P58" | IOSTANDARD = LVTTL | SLEW = SLOW ;
NET "BTN2"  LOC = "P57" | IOSTANDARD = LVTTL | SLEW = SLOW ;
NET "BTN3"  LOC = "P154" | IOSTANDARD = LVTTL | SLEW = SLOW ;
NET "LD0"  LOC = "P46" | IOSTANDARD = LVTTL  | SLEW = SLOW ;
NET "LD1"  LOC = "P45" | IOSTANDARD = LVTTL  | SLEW = SLOW ;
NET "LD2"  LOC = "P44" | IOSTANDARD = LVTTL  | SLEW = SLOW ;
NET "LD3"  LOC = "P43" | IOSTANDARD = LVTTL  | SLEW = SLOW ;
NET "LD4"  LOC = "P42" | IOSTANDARD = LVTTL  | SLEW = SLOW ;
NET "SW0"  LOC = "P89" | IOSTANDARD = LVTTL ;
NET "SW1"  LOC = "P88" | IOSTANDARD = LVTTL ;
NET "SW2"  LOC = "P87" | IOSTANDARD = LVTTL ;
NET "SW3"  LOC = "P86" | IOSTANDARD = LVTTL ;
NET "SW4"  LOC = "P84" | IOSTANDARD = LVTTL ;
NET "SW5"  LOC = "P83" | IOSTANDARD = LVTTL ;
NET "SW6"  LOC = "P82" | IOSTANDARD = LVTTL ;
NET "SW7"  LOC = "P81" | IOSTANDARD = LVTTL ;

pin-atamalari/05/pins.ucf

NET "A<0>"  LOC = "P89"  ;
NET "A<1>"  LOC = "P88"  ;
NET "A<2>"  LOC = "P87"  ;
NET "A<3>"  LOC = "P86"  ;
NET "B<0>"  LOC = "P84"  ;
NET "B<1>"  LOC = "P83"  ;
NET "B<2>"  LOC = "P82"  ;
NET "B<3>"  LOC = "P81"  ;
NET "cin"   LOC = "P59"  ;
NET "cout"  LOC = "P42"  ;
NET "S<0>"  LOC = "P46"  ;
NET "S<1>"  LOC = "P45"  ;
NET "S<2>"  LOC = "P44"  ;
NET "S<3>"  LOC = "P43"  ;
