Outline:

• The Laplace Transform
• The Region of Convergence for Laplace Transforms
• The Inverse Laplace Transform
• Geometric Evaluation of the Fourier Transform
• Properties of the Laplace Transform
• Some Laplace Transform Pairs
• Analysis & Characterization of LTI Systems Using the Laplace Transform
• System Function Algebra and Block Diagram Representations
• The Unilateral Laplace Transform

The Laplace transform

The Laplace transform of a general signal x(t)

• Fourier: X(jω) ≜ ∫_{−∞}^{∞} x(t) e^{−jωt} dt; x(t) ↔ X(jω), X(jω) = F{x(t)}, x(t) = F⁻¹{X(jω)}
• Laplace, with s = σ + jω: X(s) ≜ ∫_{−∞}^{∞} x(t) e^{−st} dt; x(t) ↔ X(s), X(s) = L{x(t)}, x(t) = L⁻¹{X(s)}

X(s)|_{s=jω} = L{x(t)}|_{s=jω} = F{x(t)} = X(jω)

Laplace transform & Fourier transform

L{x(t)} = X(s) = X(σ + jω) = ∫_{−∞}^{∞} x(t) e^{−(σ+jω)t} dt = ∫_{−∞}^{∞} [x(t)e^{−σt}] e^{−jωt} dt = F{x(t)e^{−σt}}

For σ > 0 the signal is multiplied by a decaying exponential, for σ < 0 by a growing exponential.

Example 9.1: x(t) = e^{−at}u(t)

X(jω) = ∫_0^∞ e^{−at} e^{−jωt} dt = [e^{−(a+jω)t} / (−(a + jω))]_0^∞ = 1/(jω + a), a > 0

X(σ + jω) = ∫_0^∞ e^{−(σ+a)t} e^{−jωt} dt = 1/((σ + a) + jω), σ + a > 0

⇒ X(s) = 1/(s + a), Re{s} > −a

Example 9.2: x(t) = −e^{−at}u(−t)

X(s) = −∫_{−∞}^{0} e^{−at} e^{−st} dt = 1/(s + a), Re{s} < −a

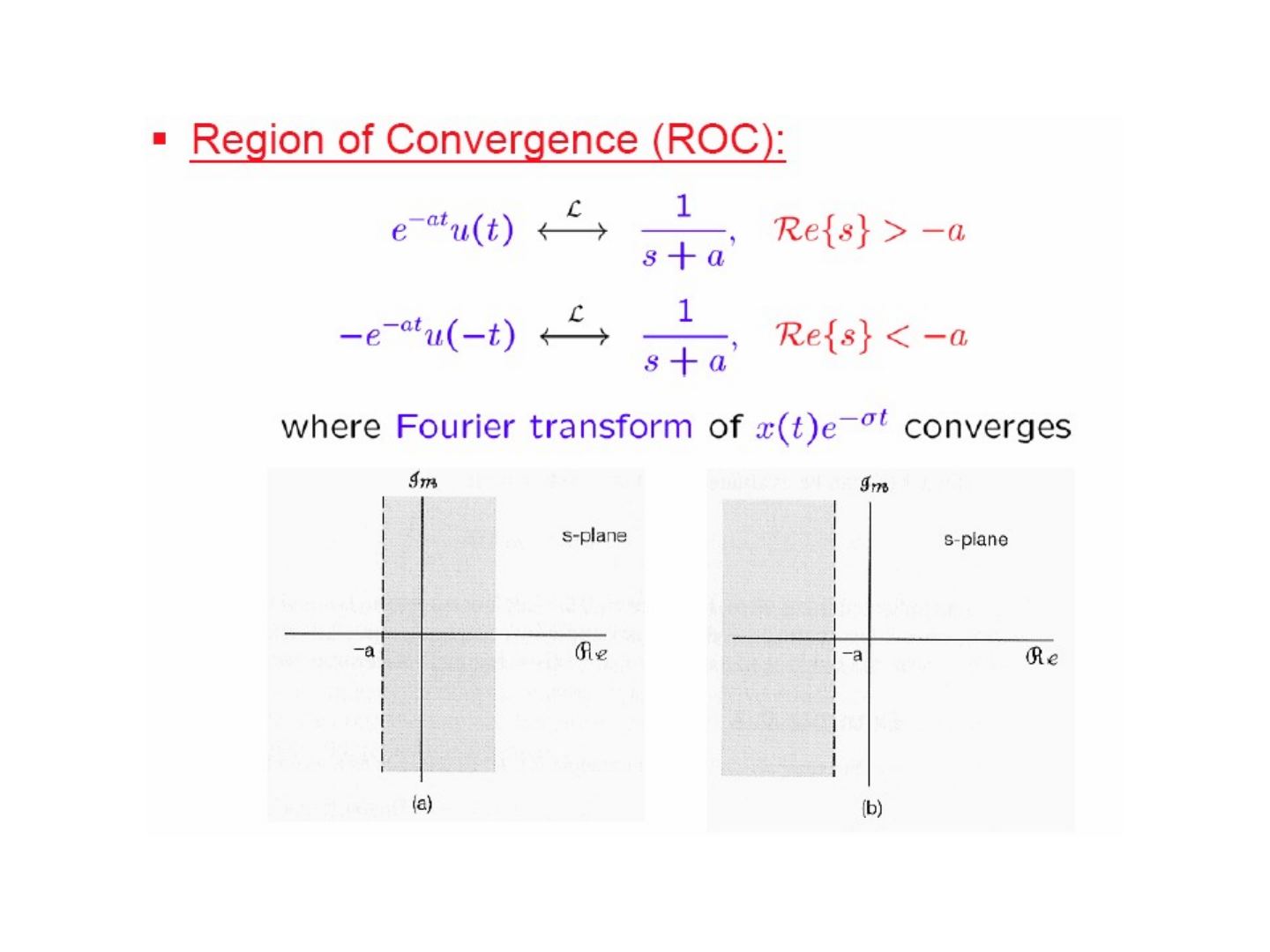

Region of convergence (ROC)

• e^{−at}u(t) ↔ 1/(s + a), Re{s} > −a
• −e^{−at}u(−t) ↔ 1/(s + a), Re{s} < −a

The ROC is where the Fourier transform of x(t)e^{−σt} converges; the two signals have the same algebraic X(s) and differ only in the ROC.

Example 9.3: x(t) = 3e^{−2t}u(t) − 2e^{−t}u(t)

X(s) = 3∫ e^{−2t}u(t)e^{−st} dt − 2∫ e^{−t}u(t)e^{−st} dt = 3/(s + 2) − 2/(s + 1)

• e^{−t}u(t) ↔ 1/(s + 1), Re{s} > −1
• e^{−2t}u(t) ↔ 1/(s + 2), Re{s} > −2

⇒ 3e^{−2t}u(t) − 2e^{−t}u(t) ↔ 3/(s + 2) − 2/(s + 1) = (s − 1)/((s + 2)(s + 1)), Re{s} > −1

The jω-axis is included in the ROC, so the Fourier transform exists (s = jω).

Example 9.4: x(t) = e^{−2t}u(t) + e^{−t}(cos 3t)u(t)

x(t) = [e^{−2t} + ½e^{−t}(e^{j3t} + e^{−j3t})] u(t); using e^{−at}u(t) ↔ 1/(s + a), Re{s} > −Re{a}:

• e^{−2t}u(t) ↔ 1/(s + 2), Re{s} > −2
• e^{−(1−3j)t}u(t) ↔ 1/(s + (1 − 3j)), Re{s} > −1
• e^{−(1+3j)t}u(t) ↔ 1/(s + (1 + 3j)), Re{s} > −1

X(s) = 1/(s + 2) + ½[1/(s + (1 − 3j)) + 1/(s + (1 + 3j))] = (2s² + 5s + 12) / ((s² + 2s + 10)(s + 2)), Re{s} > −1

= 2(s + 1.25 − 2.11j)(s + 1.25 + 2.11j) / ((s + 1 − 3j)(s + 1 + 3j)(s + 2)). The jω-axis is in the ROC ⇒ the Fourier transform exists.

Example 9.5: x(t) = δ(t) − (4/3)e^{−t}u(t) + (1/3)e^{2t}u(t)

Since ∫ δ(t)e^{−st} dt = 1:

X(s) = 1 − (4/3)·1/(s + 1) + (1/3)·1/(s − 2) = (s − 1)² / ((s + 1)(s − 2)), Re{s} > 2

The jω-axis is not included in the ROC: does the Fourier transform exist? Why? (question on the slide)

Properties of the ROC

1. The ROC of X(s) consists of strips parallel to the jω-axis in the s-plane.
2. For rational Laplace transforms, the ROC does not contain any poles.
3. If x(t) is of finite duration and is absolutely integrable (∫_{T₁}^{T₂} |x(t)| dt < ∞), then the ROC is the entire s-plane: |X(s)| ≤ ∫_{T₁}^{T₂} |x(t)e^{−st}| dt < e^{−σT₁ (or T₂)} ∫_{T₁}^{T₂} |x(t)| dt.
4. If x(t) is right-sided, and if the line Re{s} = σ₀ is in the ROC, then all values of s for which Re{s} > σ₀ will also be in the ROC: if ∫_{T₁}^{∞} |x(t)| e^{−σ₀t} dt < ∞, then for σ₁ > σ₀, ∫_{T₁}^{∞} |x(t)| e^{−σ₁t} dt ≤ e^{−(σ₁−σ₀)T₁} ∫_{T₁}^{∞} |x(t)| e^{−σ₀t} dt.
5. If x(t) is left-sided, and if the line Re{s} = σ₀ is in the ROC, then all values of s for which Re{s} < σ₀ will also be in the ROC (the argument is similar to that for property 4).
6. If x(t) is two-sided, and if the line Re{s} = σ₀ is in the ROC, then the ROC will consist of a strip in the s-plane that includes the line Re{s} = σ₀ (x(t) = x_R(t) + x_L(t); the ROC is σ_R < Re{s} < σ_L).
7. If the Laplace transform X(s) of x(t) is rational, then its ROC is bounded by poles or extends to ∞. In addition, no poles of X(s) are contained in the ROC.
8. If X(s) is rational: if x(t) is right-sided, the ROC is the region in the s-plane to the right of the rightmost pole; if x(t) is left-sided, the ROC is the region to the left of the leftmost pole.

Example 9.7: x(t) = e^{−b|t|}

x(t) = e^{−bt}u(t) + e^{+bt}u(−t)

• e^{−bt}u(t) ↔ 1/(s + b), Re{s} > −b
• e^{+bt}u(−t) ↔ −1/(s − b), Re{s} < +b

• b > 0: e^{−b|t|} ↔ 1/(s + b) − 1/(s − b) = −2b / ((s + b)(s − b)), −b < Re{s} < +b
• b ≤ 0: no common ROC — x(t) has no Laplace transform

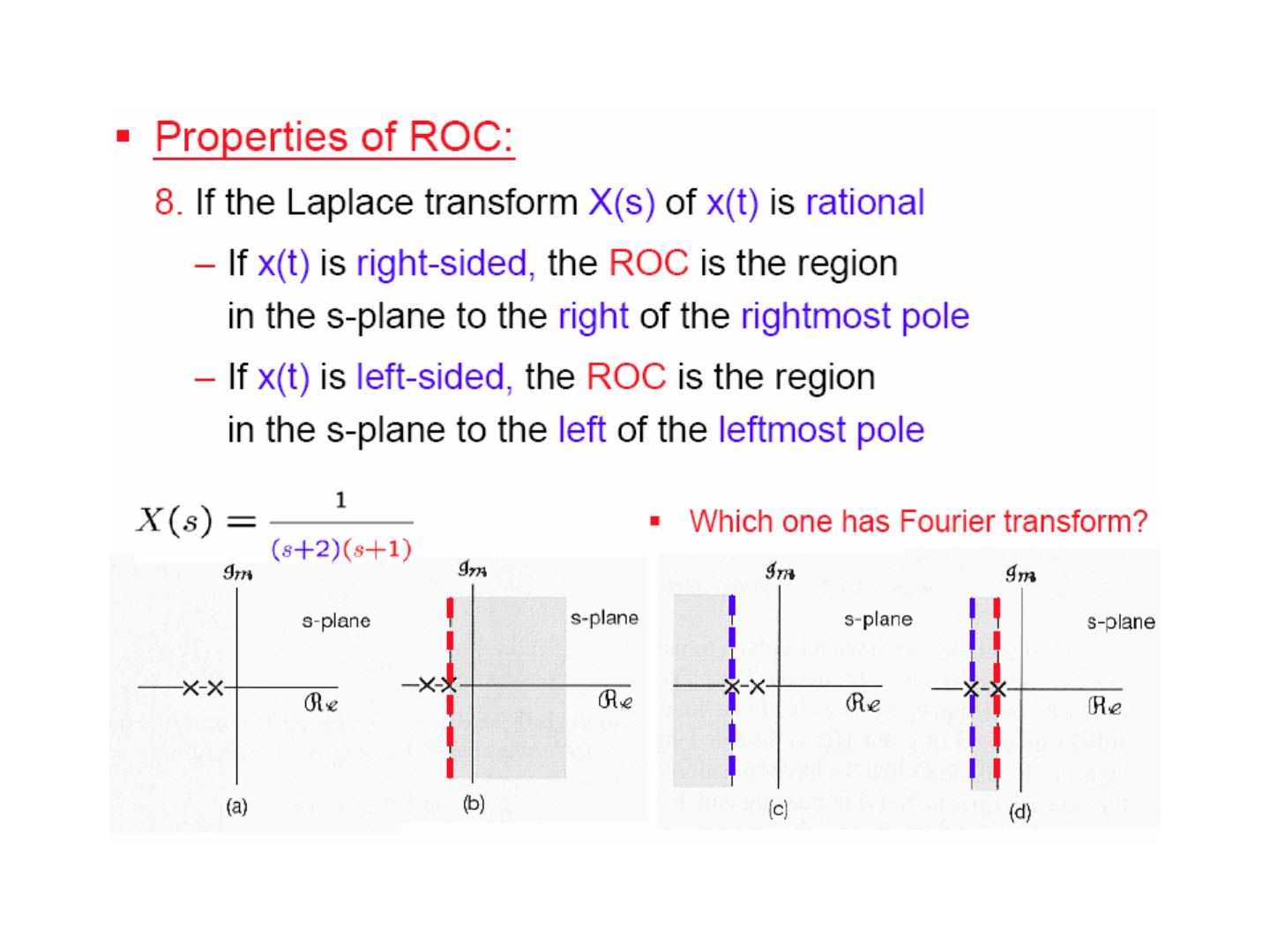

For X(s) = 1/((s + 2)(s + 1)) there are three possible ROCs (Re{s} > −1, Re{s} < −2, −2 < Re{s} < −1). Which one has a Fourier transform? (question on the slide)

The inverse Laplace transform

By the use of contour integration

X(σ + jω) = F{x(t)e^{−σt}} = ∫ x(t)e^{−σt}e^{−jωt} dt for all s = σ + jω in the ROC

x(t)e^{−σt} = F⁻¹{X(σ + jω)} = (1/2π) ∫_{−∞}^{∞} X(σ + jω) e^{jωt} dω

⇒ x(t) = (1/2π) ∫_{−∞}^{∞} X(σ + jω) e^{(σ+jω)t} dω; with s = σ + jω, ds = j dω:

x(t) = (1/2πj) ∫_{σ−j∞}^{σ+j∞} X(s) e^{st} ds

By the technique of partial fraction expansion

X(s) = A₁/(s + a₁) + A₂/(s + a₂) + … + A_m/(s + a_m)

x(t) = A₁e^{−a₁t}u(t) − A₂e^{−a₂t}u(−t) + … + x_m(t) (each term right-sided or left-sided depending on the ROC), using e^{−at}u(t) ↔ 1/(s + a), Re{s} > −a and −e^{−at}u(−t) ↔ 1/(s + a), Re{s} < −a.

Example 9.9

X(s) = 1/((s + 1)(s + 2)), Re{s} > −1 ⇒ X(s) = 1/(s + 1) − 1/(s + 2)

⇒ [e^{−t} − e^{−2t}] u(t) ↔ 1/((s + 1)(s + 2)), Re{s} > −1

Examples 9.9, 9.10, 9.11 — the inverse of each term depends on the ROC:

Not: Slayttaki birleşik tablo 1/(s+1) + 1/(s+2) toplamı için yazılmış; Örnek 9.9'daki X(s) = 1/(s+1) − 1/(s+2) için ikinci terimin işareti eksi alınmalıdır (ör. −1 < Re{s} için x(t) = [e^{−t} − e^{−2t}]u(t)).

Geometric evaluation of the Fourier transform

First-order systems

h(t) = (1/τ)e^{−t/τ}u(t) ↔ H(s) = (1/τ)/(s + 1/τ), Re{s} > −1/τ; H(jω) = (1/τ)/(jω + 1/τ)

The Bode plot of 20 log₁₀|H(jω)| is flat up to ω = 1/τ (3 dB point) and then falls; the phase goes from 0 to −π/2. Geometrically, |H(jω)| is inversely proportional to the length of the vector from the pole −1/τ to jω.

Second-order systems

h(t) = M[e^{c₁t} − e^{c₂t}]u(t), with c₁ = −ζω_n + ω_n√(ζ² − 1), c₂ = −ζω_n − ω_n√(ζ² − 1), M = ω_n / (2√(ζ² − 1))

⇒ H(jω) = ω_n² / ((jω)² + 2ζω_n(jω) + ω_n²) ⇒ H(s) = ω_n² / (s² + 2ζω_n s + ω_n²) = ω_n² / ((s − c₁)(s − c₂))

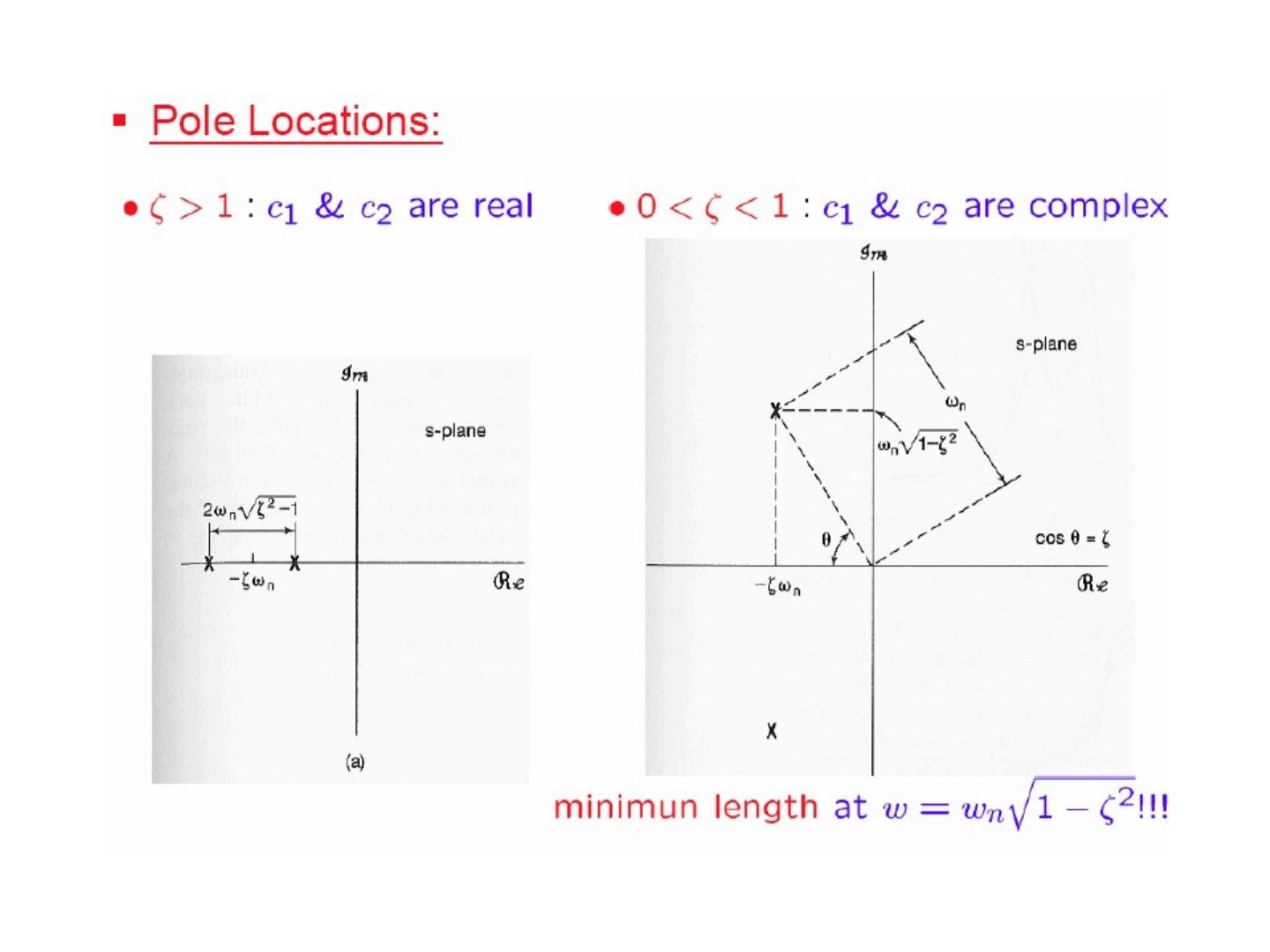

• ζ > 1: c₁ and c₂ are real (separated by 2ω_n√(ζ² − 1) around −ζω_n)
• 0 < ζ < 1: c₁ and c₂ are complex, at distance ω_n from the origin, with cos θ = ζ; the vector from the pole has minimum length at ω = ω_n√(1 − ζ²).

Relative bandwidth B: at ω = ω_n√(1 − ζ²) ± ζω_n the length of the pole vector grows from A to √2·A, so |H(jω)| at these points is ≈ (or ≤) 1/√2 of its value at ω_n√(1 − ζ²) ⇒ B = 2ζ, and the phase changes by Δ∠H(jω) = π/2 across this band.

The frequency-response plots show |H(jω)| and ∠H(jω) for ω_n = 1 and ζ = 0.1, 0.2, 0.4 (sharper peaks for smaller ζ), and the Bode plots for ζ from 0.1 to 1.5.

Nth-order systems

H(jω) = ((1/τ)/(jω + 1/τ)) Π_i (ω_ni² / ((jω)² + 2ζ_i ω_ni (jω) + ω_ni²))

H(s) = (b/(s − a)) (Π_i ω_ni² / (s² + 2ζ_i ω_ni s + ω_ni²))

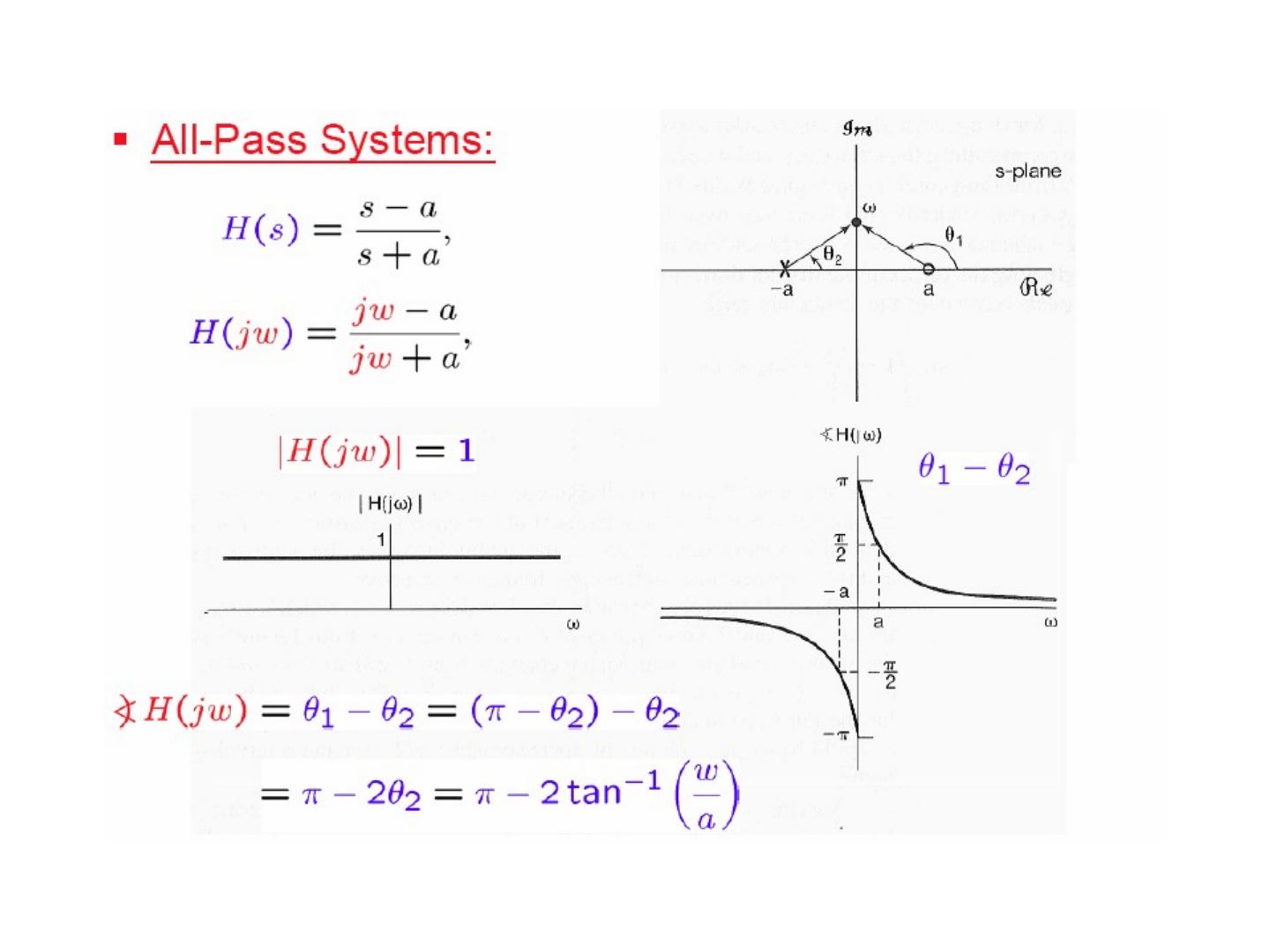

All-pass systems

H(s) = (s − a)/(s + a), H(jω) = (jω − a)/(jω + a) ⇒ |H(jω)| = 1

∠H(jω) = θ₁ − θ₂ = (π − θ₂) − θ₂ = π − 2θ₂ = π − 2 tan⁻¹(ω/a)

Properties of the Laplace transform

Throughout, X(s) = ∫ x(t)e^{−st} dt, x(t) = (1/2πj) ∫_{σ−j∞}^{σ+j∞} X(s)e^{st} ds, x(t) ↔ X(s) with ROC = R.

• Linearity: a x₁(t) + b x₂(t) ↔ a X₁(s) + b X₂(s), with ROC containing R₁ ∩ R₂
• Example 9.13: x(t) = x₁(t) − x₂(t) with X₁(s) = 1/(s + 1), Re{s} > −1 and X₂(s) = 1/((s + 1)(s + 2)), Re{s} > −1: X(s) = 1/(s + 1) − 1/((s + 1)(s + 2)) = 1/(s + 2) — the pole at −1 cancels and the ROC grows to Re{s} > −2.
• Time shifting: x(t − t₀) ↔ e^{−st₀}X(s), ROC = R
• Shifting in the s-domain: e^{s₀t}x(t) ↔ X(s − s₀), ROC = R + Re{s₀}, since X(s − s₀) = ∫ x(t)e^{−(s−s₀)t} dt
• Time scaling: x(at) ↔ (1/|a|) X(s/a), ROC = aR (the strip is scaled by a; for a < 0 it is also reversed); in particular x(−t) ↔ X(−s), ROC = −R
• Conjugation: x*(t) ↔ X*(s*), ROC = R
• Convolution: x₁(t) ∗ x₂(t) = ∫ x₁(τ)x₂(t − τ) dτ ↔ X₁(s)X₂(s), ROC containing R₁ ∩ R₂
• Differentiation in the time domain: dx(t)/dt ↔ sX(s), ROC containing R
• Differentiation in the s-domain: −t x(t) ↔ dX(s)/ds, ROC = R
• Integration in the time domain: ∫_{−∞}^{t} x(τ) dτ = x(t) ∗ u(t) ↔ (1/s) X(s), ROC containing R ∩ {Re{s} > 0}
• The initial-value theorem: if x(t) = 0 for t < 0 ⇒ x(0⁺) = lim_{s→∞} sX(s)
• The final-value theorem: if x(t) = 0 for t < 0 and x(t) has a finite limit as t → ∞ ⇒ lim_{t→∞} x(t) = lim_{s→0} sX(s)

Both theorems follow from L{dx(t)/dt} = ∫_0^∞ (dx(t)/dt) e^{−st} dt = sX(s) − x(0⁺) by letting s → ∞ and s → 0.

Some Laplace transform pairs (Table 9.2)

Analysis & characterization of LTI systems using the Laplace transform

X(s) → LTI system → Y(s) = H(s)X(s), where H(s) = L{h(t)} is the system function or transfer function.

Causality

• For a causal LTI system, h(t) = 0 for t < 0, and thus h(t) is right-sided.
• The ROC associated with the system function of a causal system is a right-half plane.
• For a system with a rational system function, causality is equivalent to the ROC being the right-half plane to the right of the rightmost pole.

Examples 9.17, 9.18, 9.19:

Anti-causality

• For an anti-causal LTI system, h(t) = 0 for t > 0, and thus h(t) is left-sided.
• The ROC of an anti-causal system is a left-half plane.
• For a rational system function, anti-causality is equivalent to the ROC being the left-half plane to the left of the leftmost pole.

Stability

• An LTI system is stable if and only if the ROC of its system function H(s) includes the entire jω-axis (Re{s} = 0).
• A causal system with rational system function H(s) is stable if and only if all of the poles of H(s) lie in the left half of the s-plane, i.e. all of the poles have negative real parts.

Example 9.20

H(s) = (s − 1)/((s + 1)(s − 2)) has three possible ROCs:

• Re{s} > 2: h(t) = (⅔e^{−t} + ⅓e^{2t}) u(t) — causal, (unstable)
• −1 < Re{s} < 2: h(t) = ⅔e^{−t}u(t) − ⅓e^{2t}u(−t) — stable, (not causal)
• Re{s} < −1: h(t) = −(⅔e^{−t} + ⅓e^{2t}) u(−t) — unstable, anticausal

Examples 9.17, 9.21: h(t) = e^{−t}u(t) ↔ 1/(s + 1), −1 < Re{s}: causal, stable, rational; h(t) = e^{2t}u(t) ↔ 1/(s − 2), 2 < Re{s}: causal, unstable, rational.

LTI systems described by linear constant-coefficient differential equations

Σ_{k=0}^{N} a_k d^k y(t)/dt^k = Σ_{k=0}^{M} b_k d^k x(t)/dt^k

Taking the Laplace transform: Σ a_k s^k Y(s) = Σ b_k s^k X(s), so

H(s) = Y(s)/X(s) = Σ_{k=0}^{M} b_k s^k / Σ_{k=0}^{N} a_k s^k = (b_M s^M + … + b₁s + b₀)/(a_N s^N + … + a₁s + a₀) (numerator → zeros, denominator → poles).

Example 9.23: dy(t)/dt + 3y(t) = x(t) ⇒ sY(s) + 3Y(s) = X(s) ⇒ H(s) = 1/(s + 3).

• If causal: Re{s} > −3, h(t) = e^{−3t}u(t)
• If anti-causal: Re{s} < −3, h(t) = −e^{−3t}u(−t)

Example 9.24 (series RLC circuit, output across C): LC d²y/dt² + RC dy/dt + y(t) = x(t) ⇒ H(s) = (1/LC) / (s² + (R/L)s + 1/LC) = (1/LC)/((s − a)(s − b)). If R, L, C > 0, then Re{a}, Re{b} < 0, i.e. the poles have negative real parts.

Example 9.25: an LTI system has input x(t) = e^{−3t}u(t) (X(s) = 1/(s + 3), −3 < Re{s}) and output y(t) = [e^{−t} − e^{−2t}]u(t) (Y(s) = 1/((s + 1)(s + 2)), −1 < Re{s}). Then

H(s) = Y(s)/X(s) = (s + 3)/((s + 1)(s + 2)) = (s + 3)/(s² + 3s + 2), ROC: −1 < Re{s} ⇒ causal, stable

⇒ d²y/dt² + 3 dy/dt + 2y(t) = dx/dt + 3x(t), with y(0⁻) = 0, x(0⁻) = 0.

Butterworth, Chebyshev and elliptic lowpass filters

Butterworth: |H_c(jΩ)|² = 1 / (1 + (jΩ/jΩ_c)^{2N}); |H_c(jΩ)|² = 1/2 at Ω = Ω_c, and the transition gets sharper as N grows (N = 2, 4, 8).

For an Nth-order Butterworth filter B(s), |B(jω)|² = 1/(1 + (jω/jω_c)^{2N}). If the impulse response is real, B*(jω) = B(−jω), so

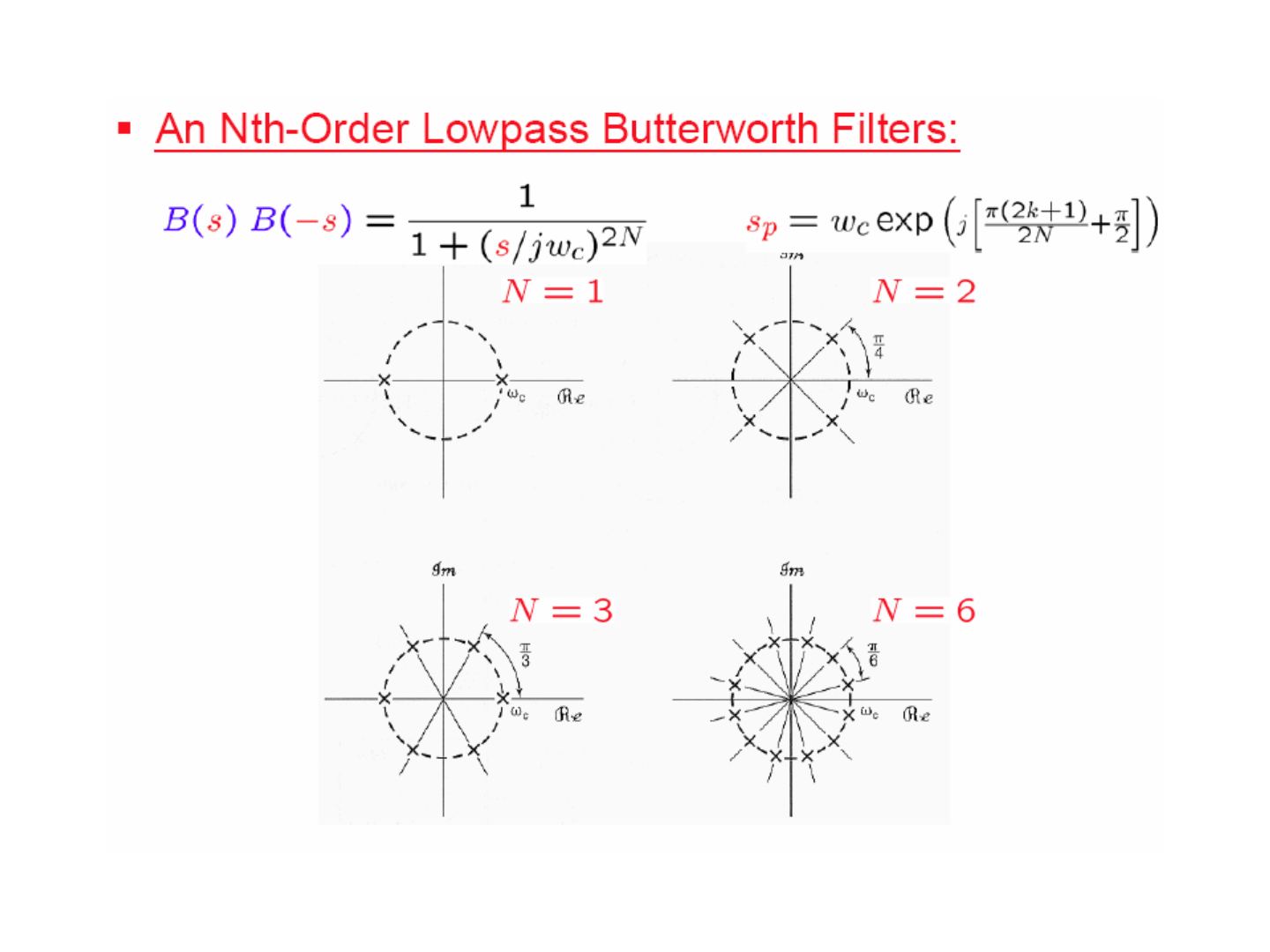

The poles are at s_p = (−1)^{1/2N}(jω_c): |s_p| = ω_c, ∠s_p = π(2k + 1)/2N + π/2, i.e. s_p = ω_c exp(j[π(2k + 1)/2N + π/2]) — 2N points equally spaced on a circle of radius ω_c (shown for N = 1, 2, 3, 6).

• Both s = s_p and s = −s_p are poles of B(s)B(−s).
• If the system is stable & causal, the poles of H(s) are those in the left-half plane.

(B(−s) is obtained by replacing s with −s, e.g. ω_c/(−s + ω_c).) The first- and second-order filters can be built as an RC circuit (dv_c/dt + (1/RC)v_c(t) = (1/RC)v_s(t)) and a series RLC circuit (LC d²y/dt² + RC dy/dt + y(t) = x(t)).

Chebyshev filters: |H_c(jΩ)|² = 1 / (1 + ε²V_N²(Ω/Ω_c)), where V_N(x) = cos(N cos⁻¹x) is the Nth-order Chebyshev polynomial (V₀(x) = 1, V₁(x) = x, V₂(x) = 2x² − 1, …). The passband has equiripple between 1 and 1 − ε.

Elliptic filters: |H_c(jΩ)|² = 1 / (1 + ε²U_N²(Ω)), U_N(x): Jacobian elliptic function. Both the passband (1 to 1 − δ₁, up to Ω_p) and the stopband (below δ₂, from Ω_s) are equiripple.

System function algebra and block diagram representations

• Parallel interconnection: h(t) = h₁(t) + h₂(t), H(s) = H₁(s) + H₂(s)
• Series interconnection: h(t) = h₁(t) ∗ h₂(t), H(s) = H₁(s)H₂(s)
• Feedback interconnection: Y = H₁E, Z = H₂Y, E = X − Z ⇒ H(s) = H₁(s)/(1 + H₁(s)H₂(s))

Example 9.28: causal LTI system H(s) = 1/(s + 3) ⇒ Y(s) = X(s)/(s + 3) ⇒ dy/dt + 3y(t) = x(t) ⇒ dy/dt = x(t) − 3y(t): an integrator 1/s with feedback gain −3.

Example 9.29: H(s) = (s + 2)/(s + 3) = (1/(s + 3))(s + 2) ⇒ Z(s) ≜ X(s)/(s + 3) and Y(s) = (s + 2)Z(s).

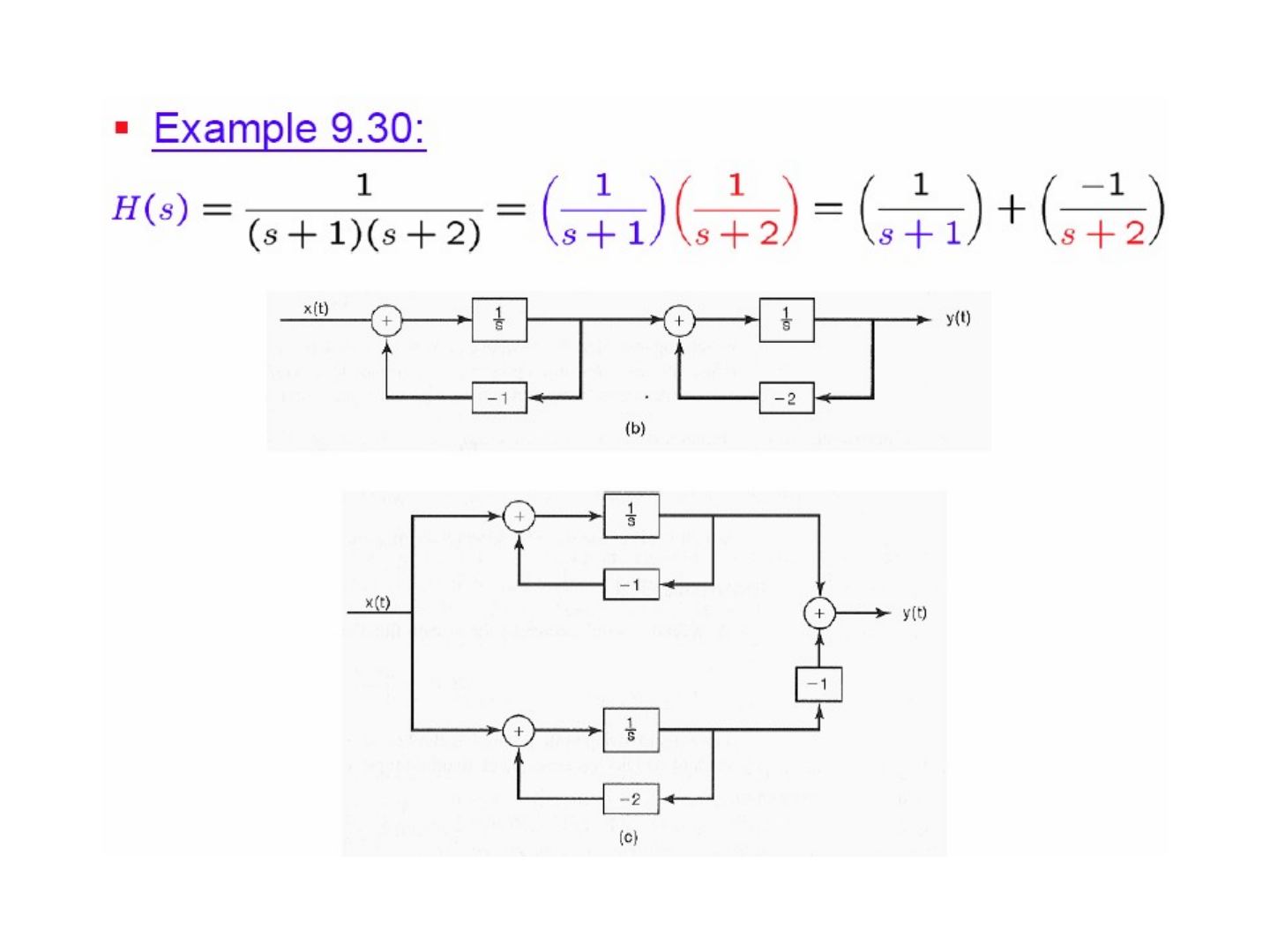

Example 9.30: H(s) = 1/((s + 1)(s + 2)) = 1/(s² + 3s + 2) ⇒ s²Y + 3sY + 2Y = X. With F = sY and E = sF = s²Y: E = −3F − 2Y + X (direct form with two integrators). Also H(s) = (1/(s + 1))(1/(s + 2)) (cascade) = 1/(s + 1) − 1/(s + 2) (parallel).

Example 9.31: H(s) = (2s² + 4s − 6)/(s² + 3s + 2) = (1/(s² + 3s + 2))(2s² + 4s − 6) ⇒ Z(s) ≜ X(s)/(s² + 3s + 2), Y(s) = (2s² + 4s − 6)Z(s). Equivalent forms:

• direct form: (2s² + 4s − 6)/(s² + 3s + 2)
• cascade: (2(s − 1)/(s + 2)) ((s + 3)/(s + 1)) or (2(s − 1)/(s + 1)) ((s + 3)/(s + 2))
• parallel: 2 + 6/(s + 2) − 8/(s + 1)

The unilateral Laplace transform

• Bilateral LT: X(s) ≜ ∫_{−∞}^{∞} x(t)e^{−st} dt; x(t) ↔ X(s), X(s) = L{x(t)}, x(t) = L⁻¹{X(s)}
• Unilateral LT (for causal systems with nonzero initial conditions): 𝒳(s) ≜ ∫_{0⁻}^{∞} x(t)e^{−st} dt; x(t) ↔ 𝒳(s) (UL), 𝒳(s) = UL{x(t)}, x(t) = UL⁻¹{𝒳(s)}; ROC: a right-half plane

Table 9.3 (properties of the unilateral Laplace transform) highlights the differences from the bilateral transform: the convolution property assumes x₁(t) = x₂(t) ≡ 0 for t < 0, and differentiation in the time domain gives s𝒳(s) − x(0⁻).

Differentiation property:

UL{dx(t)/dt} = ∫_{0⁻}^{∞} (dx(t)/dt) e^{−st} dt = [x(t)e^{−st}]_{0⁻}^{∞} + s∫_{0⁻}^{∞} x(t)e^{−st} dt = s𝒳(s) − x(0⁻)

UL{d²x(t)/dt²} = s²𝒳(s) − s x(0⁻) − x′(0⁻)

Example 9.38

d²y/dt² + 3 dy/dt + 2y(t) = x(t), with y(0⁻) = β, y′(0⁻) = γ, x(t) = αu(t)

⇒ [s²𝒴(s) − βs − γ] + 3[s𝒴(s) − β] + 2𝒴(s) = α/s

⇒ 𝒴(s) = β(s + 3)/((s + 1)(s + 2)) + γ/((s + 1)(s + 2)) + α/(s(s + 1)(s + 2))

The first two terms form the zero-input response, the last one the zero-state response.

If α = 2, β = 3, γ = −5:

𝒴(s) = 1/s − 1/(s + 1) + 3/(s + 2) ⇒ y(t) = [1 − e^{−t} + 3e^{−2t}] u(t), for t > 0

Summary

The chapter covered: the Laplace transform; the ROC for LT; the inverse LT; geometric evaluation of the FT; properties of the LT (linearity, time shifting, shifting in the s-domain, time scaling, conjugation, convolution, differentiation in the time domain, differentiation in the s-domain, integration in the time domain, initial- and final-value theorems); some LT pairs; analysis & characterization of LTI systems using the LT; system function algebra and block diagram representations; the unilateral LT. The course map on the last slide is the same as in the z-transform chapter: FS (Chap 3), FT (CT Chap 4, DT Chap 5), LT (CT, Chap 9), zT (DT, Chap 10); Time-Frequency (Chap 6), CT-DT (Chap 7), Communication (Chap 8), Control (Chap 11).
